{% connectorDetailsHeader
name="Kafka"
stage="PROD"
platform="OpenMetadata"
availableFeatures=["Topics", "Sample Data"]
unavailableFeatures=[]
/ %}

In this section, we provide guides and references to use the Kafka connector.

Configure and schedule Kafka metadata and profiler workflows from the OpenMetadata UI:

- [Requirements](#requirements)
- [Metadata Ingestion](#metadata-ingestion)
- [Enable Security](#securing-kafka-connection-with-ssl-in-openmetadata)
- [Troubleshooting](/connectors/messaging/kafka/troubleshooting)

{% partial file="/v1.10/connectors/ingestion-modes-tiles.md" variables={yamlPath: "/connectors/messaging/kafka/yaml"} /%}

## Requirements

Connecting to Kafka does not require any previous configuration.

The ingestion of the Kafka topics' schema is done separately by configuring the **Schema Registry URL**. However, only the **Bootstrap Servers** information is mandatory. Below are the required Permissions for fetching the Metadata:-

- READ TOPIC
- DESCTIBE TOPIC
- READ CLUSTER

## Metadata Ingestion

{% partial
  file="/v1.10/connectors/metadata-ingestion-ui.md"
  variables={
    connector: "Kafka",
    selectServicePath: "/images/v1.10/connectors/kafka/select-service.png",
    addNewServicePath: "/images/v1.10/connectors/kafka/add-new-service.png",
    serviceConnectionPath: "/images/v1.10/connectors/kafka/service-connection.png",
}
/%}

{% stepsContainer %}
{% extraContent parentTagName="stepsContainer" %}

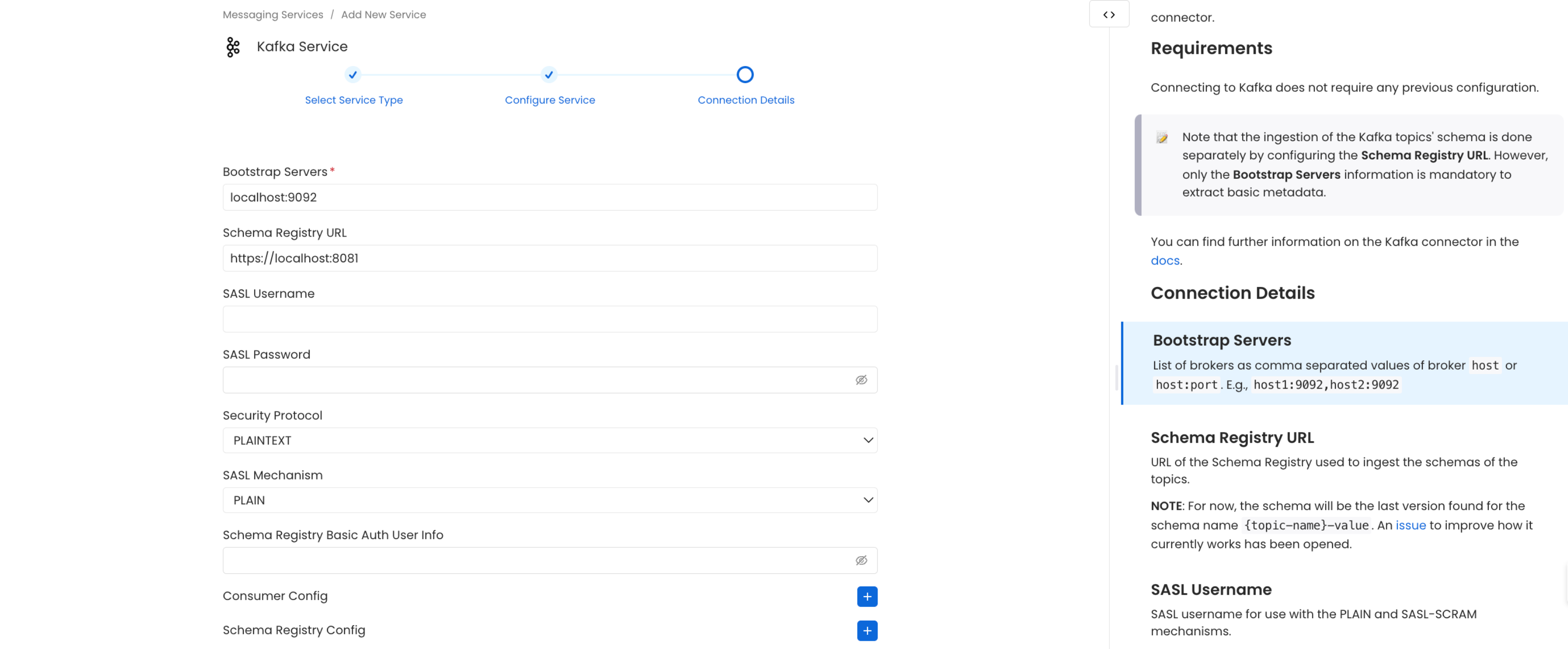

#### Connection Details

{% collateContent %}

{% note %}

When using a **Hybrid Ingestion Runner**, any sensitive credential fields—such as passwords, API keys, or private keys—must reference secrets using the following format: 

```
password: secret:/my/database/password
``` 

This applies **only to fields marked as secrets** in the connection form (these typically mask input and show a visibility toggle icon). 

For a complete guide on managing secrets in hybrid setups, see the [Hybrid Ingestion Runner Secret Management Guide](https://docs.getcollate.io/getting-started/day-1/hybrid-saas/hybrid-ingestion-runner#3.-manage-secrets-securely).

{% /note %}

{% /collateContent %}

- **Bootstrap Servers**: List of brokers as comma separated values of broker `host` or `host:port`. Example: `host1:9092,host2:9092`
- **Schema Registry URL**: URL of the Schema Registry used to ingest the schemas of the topics.
- **SASL Username**: SASL username for use with the PLAIN and SASL-SCRAM mechanisms.
- **SASL Password**: SASL password for use with the PLAIN and SASL-SCRAM mechanisms.
- **SASL Mechanism**: SASL mechanism to use for authentication.
- **Basic Auth User Info**: Schema Registry Client HTTP credentials in the form of `username:password`. By default, user info is extracted from the URL if present.
- **Consumer Config**: The accepted additional values for the consumer configuration can be found in the following [link](https://github.com/edenhill/librdkafka/blob/master/CONFIGURATION.md).
If you are using Confluent kafka and SSL encryption is enabled you need to add `security.protocol` as key and `SASL_SSL` as value under Consumer Config
- **Schema Registry Config**: The accepted additional values for the Schema Registry configuration can be found in the following [link](https://docs.confluent.io/platform/current/clients/confluent-kafka-python/html/index.html#schemaregistryclient).

{% note %}
To ingest the topic schema `Schema Registry URL` must be passed
{% /note %}

{% /extraContent %}

{% partial file="/v1.10/connectors/test-connection.md" /%}

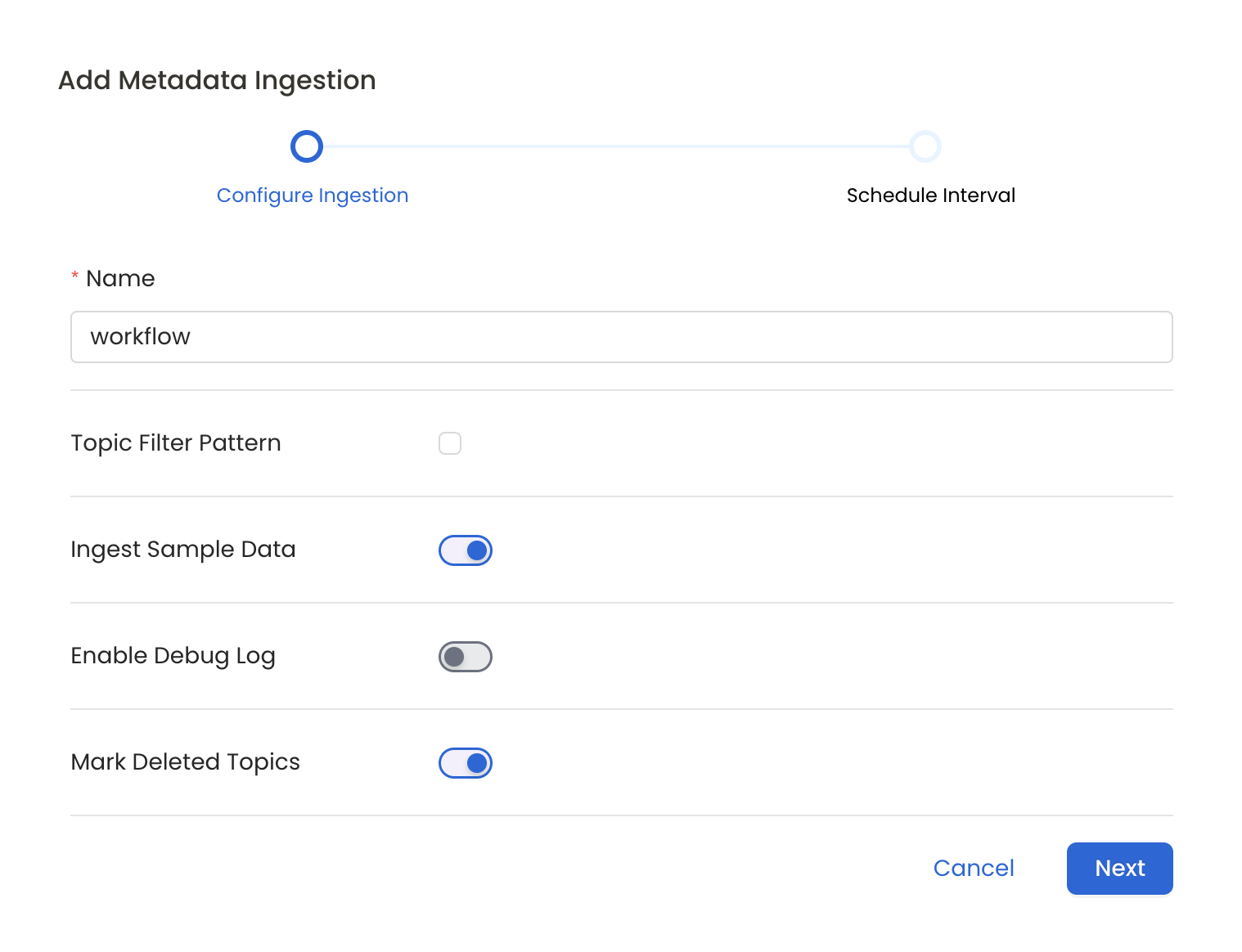

{% partial file="/v1.10/connectors/messaging/configure-ingestion.md" /%}

{% partial file="/v1.10/connectors/ingestion-schedule-and-deploy.md" /%}

{% /stepsContainer %}

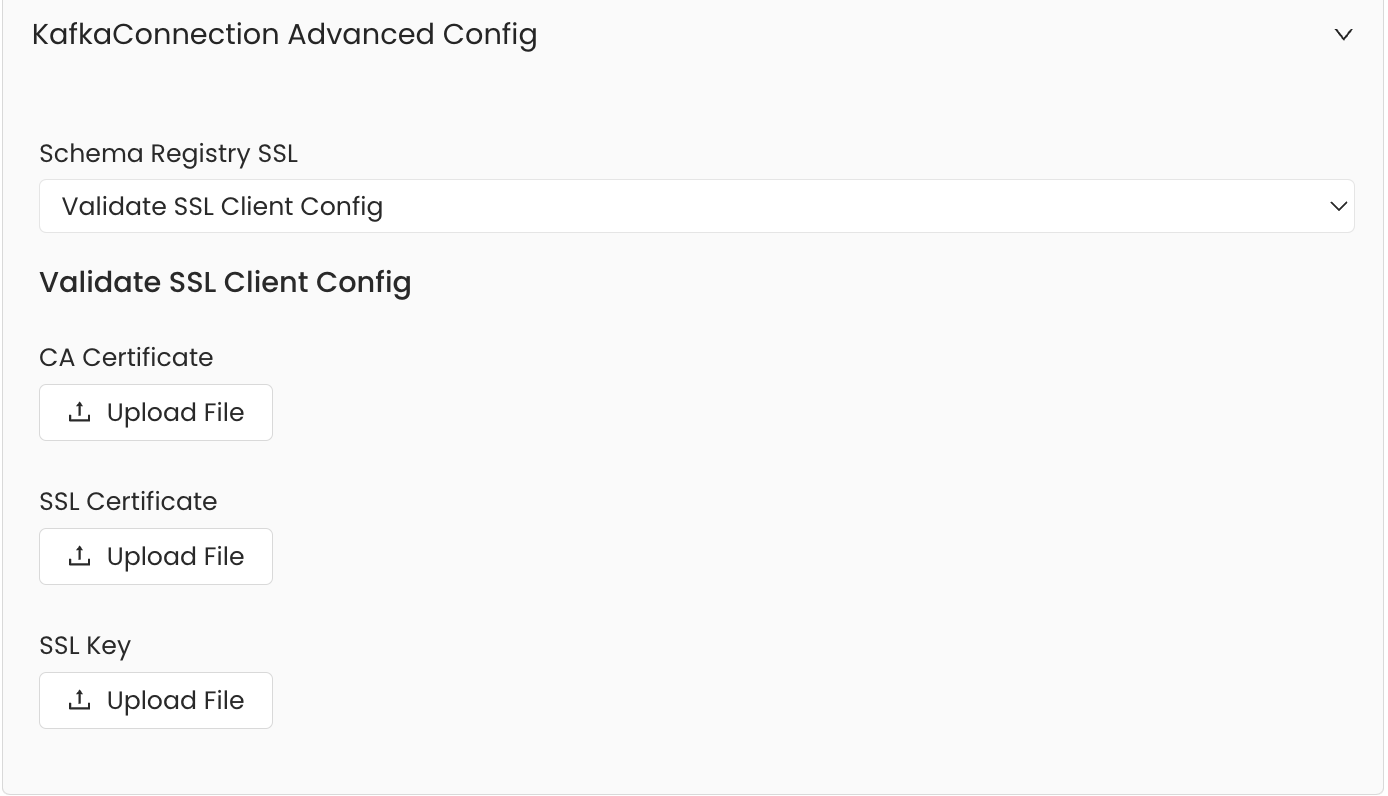

## Securing Kafka Connection with SSL in OpenMetadata

To establish secure connections between OpenMetadata and Kafka, navigate to the `Advanced Config` section. Here, you can provide the CA certificate used for SSL validation by specifying the `caCertificate`. Alternatively, if both client and server require mutual authentication, you'll need to use all three parameters: `ssl key`, `ssl cert`, and `caCertificate`. In this case, `ssl_cert` is used for the client’s SSL certificate, `ssl_key` for the private key associated with the SSL certificate, and `caCertificate` for the CA certificate to validate the server’s certificate.

  {% image
  src="/images/v1.10/connectors/ssl_kafka.png"
  alt="SSL Configuration"
  height="450px"
  caption="SSL Configuration" /%}



Connect Kafka to OpenMetadata effortlessly with our comprehensive connector guide. Set up messaging metadata ingestion, configuration, and monitoring in minutes.

Kafka

Ingestion Deployment

Run Connectors from the OpenMetadata UI

Run the Connector Externally

External Schedulers

Requirements

Metadata Ingestion

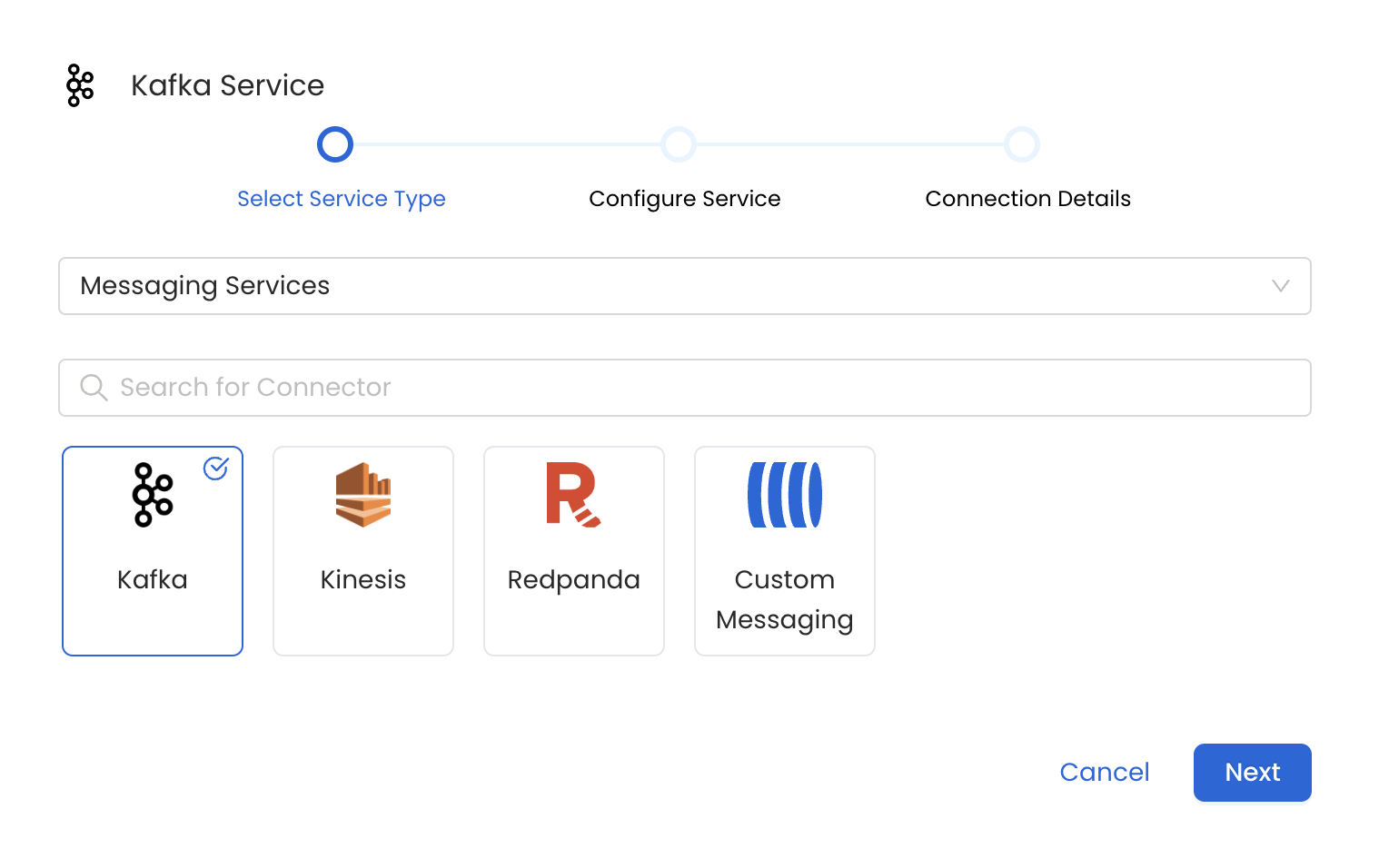

1. Visit the Services Page

2. Create a New Service

3. Select the Service Type

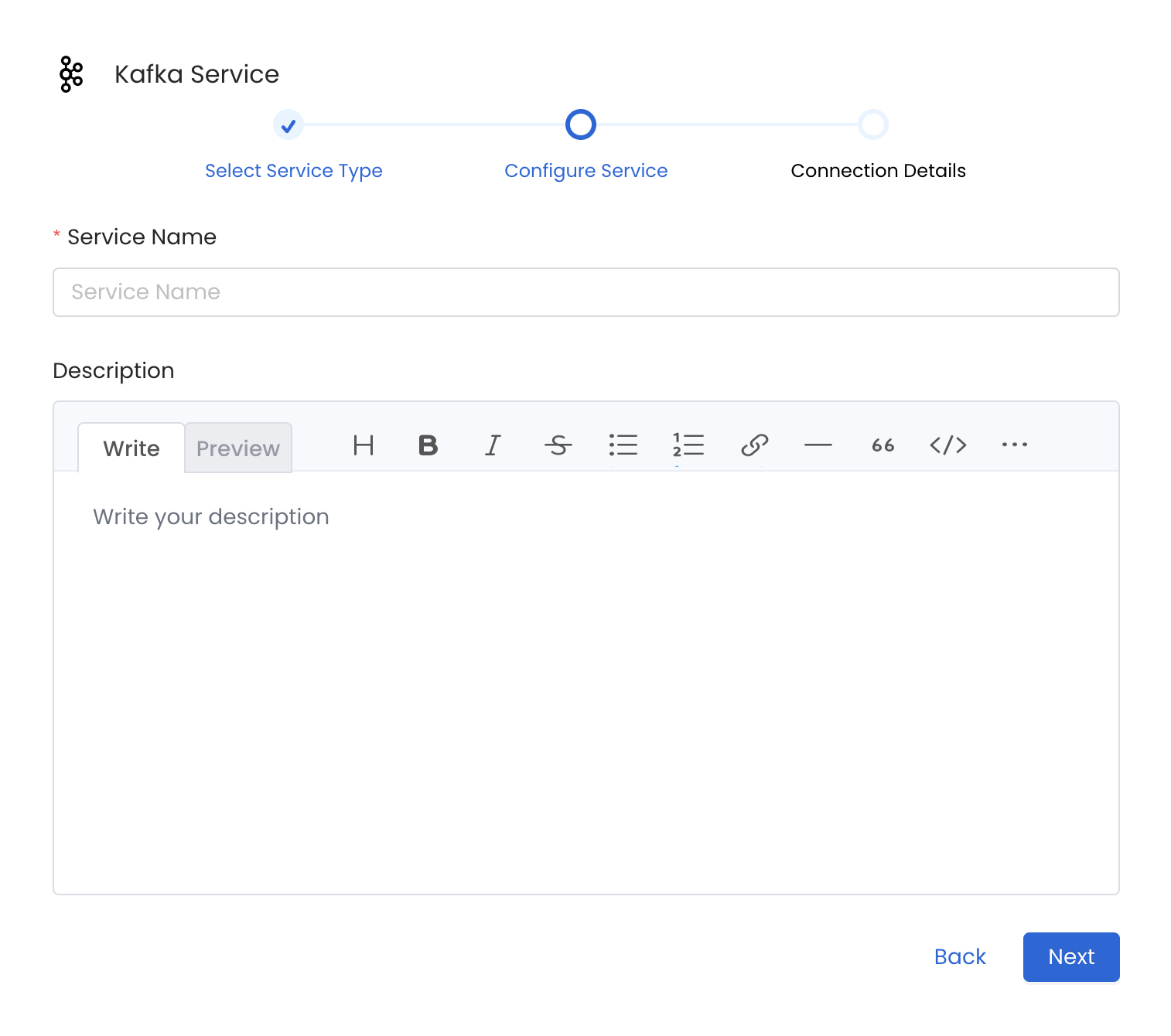

4. Name and Describe your Service
