{% connectorDetailsHeader
name="AzureSQL"
stage="PROD"
platform="OpenMetadata"
availableFeatures=["Metadata", "Query Usage", "Lineage", "Column-level Lineage", "Data Profiler", "Data Quality", "dbt", "Sample Data", "Auto-Classification"]
unavailableFeatures=["Stored Procedures", "Owners", "Tags"]
/ %}

In this section, we provide guides and references to use the AzureSQL connector.

Configure and schedule AzureSQL metadata and profiler workflows from the OpenMetadata UI:

- [Requirements](#requirements)
- [Metadata Ingestion](#metadata-ingestion)
    - [Service Name](#service-name)
    - [Connection Options](#connection-options)
    - [Metadata Ingestion Options](#metadata-ingestion-options)
- [Data Lineage](/how-to-guides/data-lineage/workflow)
- [Troubleshooting](/connectors/database/azuresql/troubleshooting)
  - [Workflow Deployment Error](#workflow-deployment-error)
- [Related](#related)

{% partial file="/v1.10/connectors/ingestion-modes-tiles.md" variables={yamlPath: "/connectors/database/azuresql/yaml"} /%}

## Requirements

Make sure if you have whitelisted ingestion container IP on Azure SQL firewall rules. Checkout [this](https://learn.microsoft.com/en-us/azure/azure-sql/database/firewall-configure?view=azuresql#use-the-azure-portal-to-manage-server-level-ip-firewall-rules) document on how to whitelist your IP using azure portal.

AzureSQL database user must grant `SELECT` privilege to fetch the metadata of tables and views.

```sql
-- Create a new user
-- More details https://learn.microsoft.com/en-us/sql/t-sql/statements/create-user-transact-sql?view=sql-server-ver16
CREATE USER Mary WITH PASSWORD = '********';
-- Grant SELECT on table
GRANT SELECT TO Mary;
```

## Metadata Ingestion

{% partial
  file="/v1.10/connectors/metadata-ingestion-ui.md"
  variables={
    connector: "Azure SQL",
    selectServicePath: "/images/v1.10/connectors/azuresql/select-service.png",
    addNewServicePath: "/images/v1.10/connectors/azuresql/add-new-service.png",
    serviceConnectionPath: "/images/v1.10/connectors/azuresql/service-connection.png",
}
/%}

{% stepsContainer %}
{% extraContent parentTagName="stepsContainer" %}

#### Connection Options

{% collateContent %}

{% note %}

When using a **Hybrid Ingestion Runner**, any sensitive credential fields—such as passwords, API keys, or private keys—must reference secrets using the following format: 

```
password: secret:/my/database/password
``` 

This applies **only to fields marked as secrets** in the connection form (these typically mask input and show a visibility toggle icon). 

For a complete guide on managing secrets in hybrid setups, see the [Hybrid Ingestion Runner Secret Management Guide](https://docs.getcollate.io/getting-started/day-1/hybrid-saas/hybrid-ingestion-runner#3.-manage-secrets-securely).

{% /note %}

{% /collateContent %}

- **Username**: Specify the User to connect to AzureSQL. It should have enough privileges to read all the metadata.
- **Password**: Password to connect to AzureSQL.
- **Host and Port**: Enter the fully qualified hostname and port number for your AzureSQL deployment in the Host and Port field.
- **Database**: The database of the data source is an optional parameter, if you would like to restrict the metadata reading to a single database. If left blank, OpenMetadata ingestion attempts to scan all the databases.
- **Driver**: Connecting to AzureSQL requires ODBC driver to be installed. Specify ODBC driver name in the field.
You can download the ODBC driver from [here](https://learn.microsoft.com/en-us/sql/connect/odbc/download-odbc-driver-for-sql-server?view=sql-server-ver16). In case of docker or kubernetes deployment this driver comes out of the box with version  `ODBC Driver 18 for SQL Server`.

**Authentication Mode**:

- **Authentication**:
   - The `authentication` parameter determines the method of authentication when connecting to AzureSQL using ODBC (Open Database Connectivity).
   - If you select **"Active Directory Password"**, you'll need to provide the password associated with your Azure Active Directory account.
   - Alternatively, if you choose **"Active Directory Integrated"**, the connection will use the credentials of the currently logged-in user. This mode ensures secure and seamless connections with AzureSQL.

- **Encrypt**:
   - The `encrypt` setting in the connection string pertains to data encryption during communication with AzureSQL.
   - When enabled, it ensures that data exchanged between your application and the database is encrypted, enhancing security.

- **Trust Server Certificate**:
   - The `trustServerCertificate` option also relates to security.
   - When set to true, your application will trust the server's SSL certificate without validation. Use this cautiously, as it bypasses certificate validation checks.

- **Connection Timeout**:
   - The `connectionTimeout` parameter specifies the maximum time (in seconds) that your application will wait while attempting to establish a connection to AzureSQL.
   - If the connection cannot be established within this timeframe, an error will be raised.

{% partial file="/v1.10/connectors/database/advanced-configuration.md" /%}

{% /extraContent %}

{% partial file="/v1.10/connectors/test-connection.md" /%}

{% partial file="/v1.10/connectors/database/configure-ingestion.md" /%}

{% partial file="/v1.10/connectors/ingestion-schedule-and-deploy.md" /%}

{% /stepsContainer %}

{% partial file="/v1.10/connectors/database/related.md" /%}


Learn how to connect Azure SQL OpenMetadata to OpenMetadata with step-by-step setup guides, configuration options, and metadata extraction features.

AzureSQL

Ingestion Deployment

Run Connectors from the OpenMetadata UI

Run the Connector Externally

External Schedulers

Requirements

Metadata Ingestion

1. Visit the Services Page

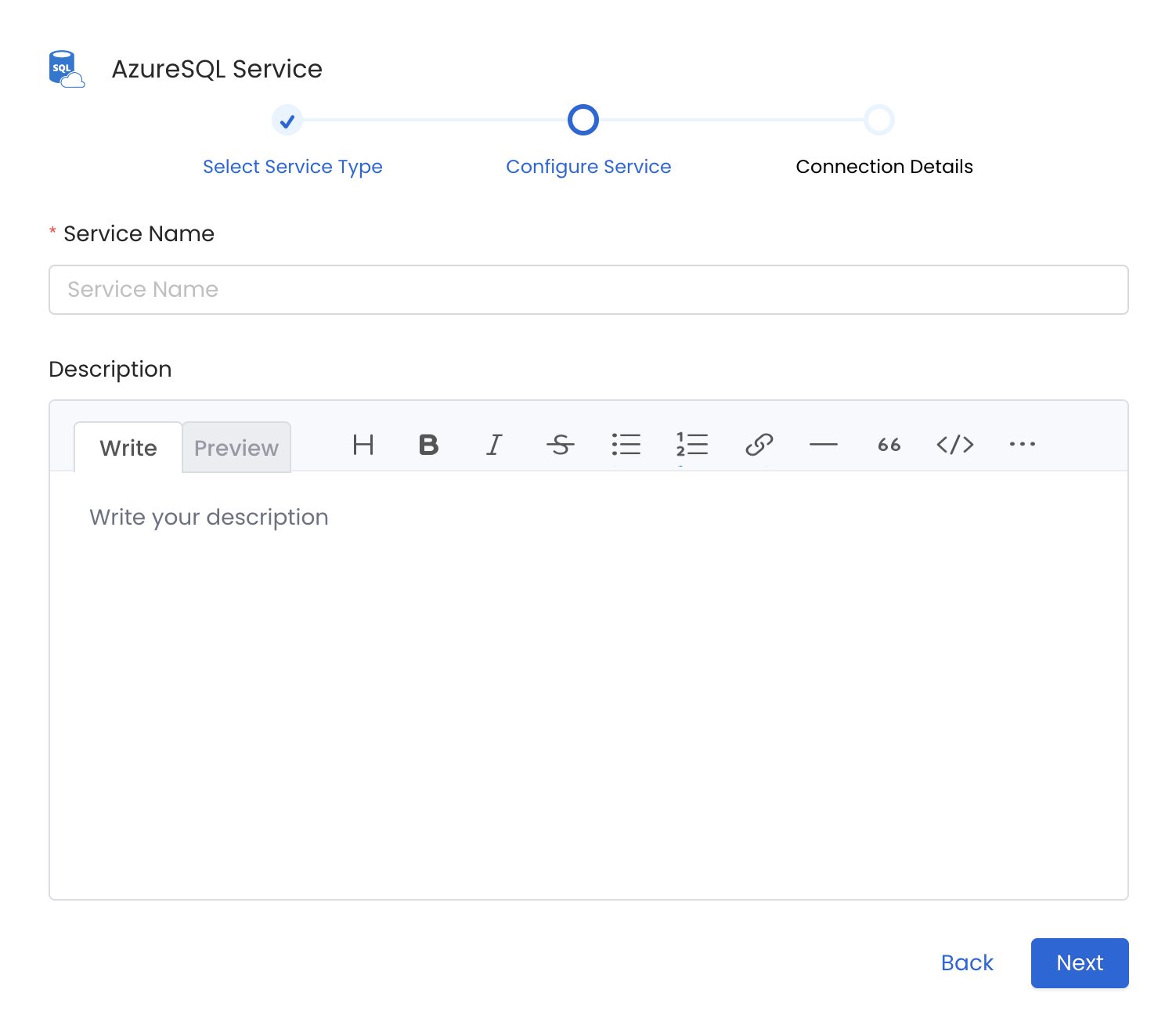

2. Create a New Service

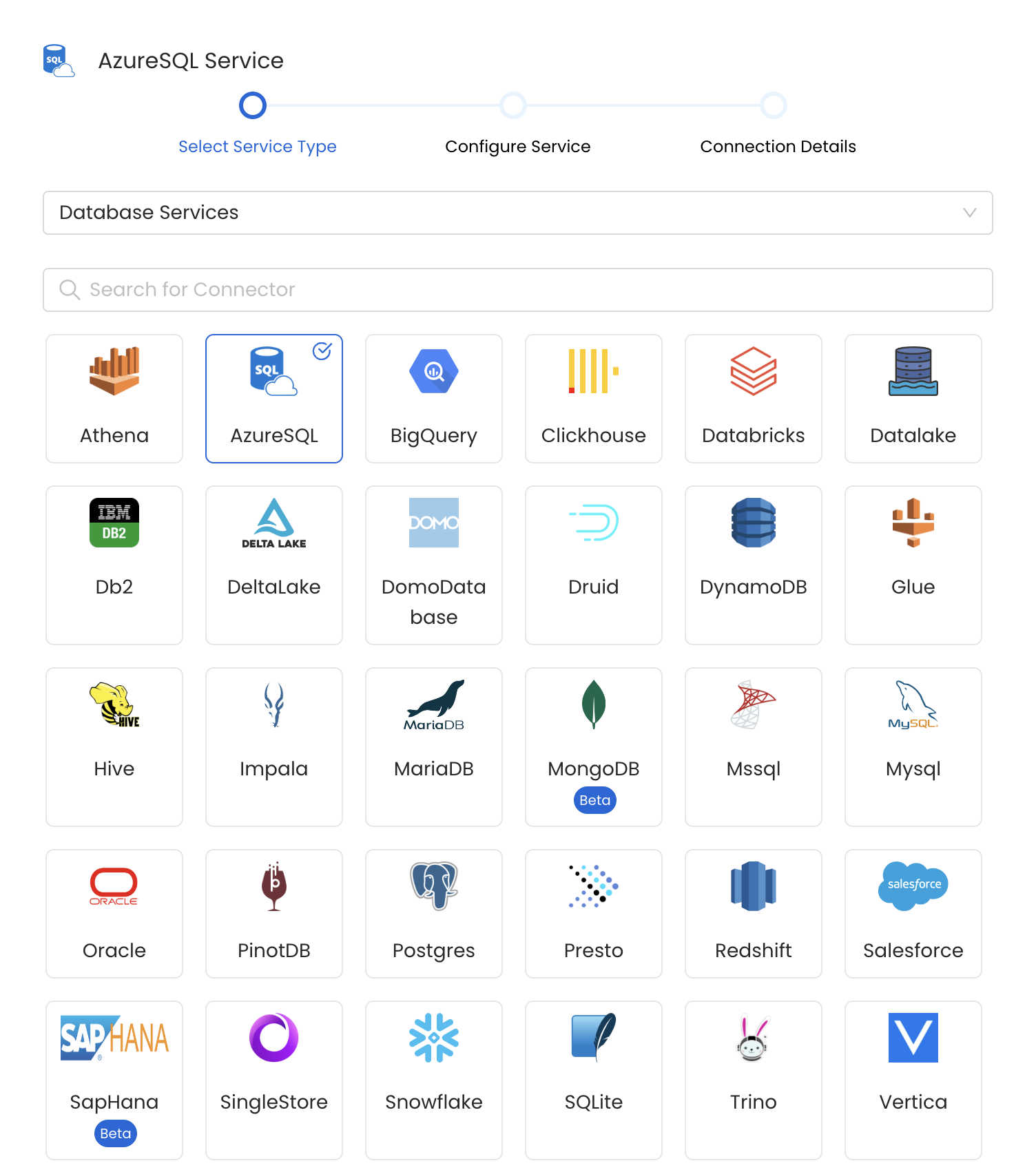

3. Select the Service Type

4. Name and Describe your Service

Service Name

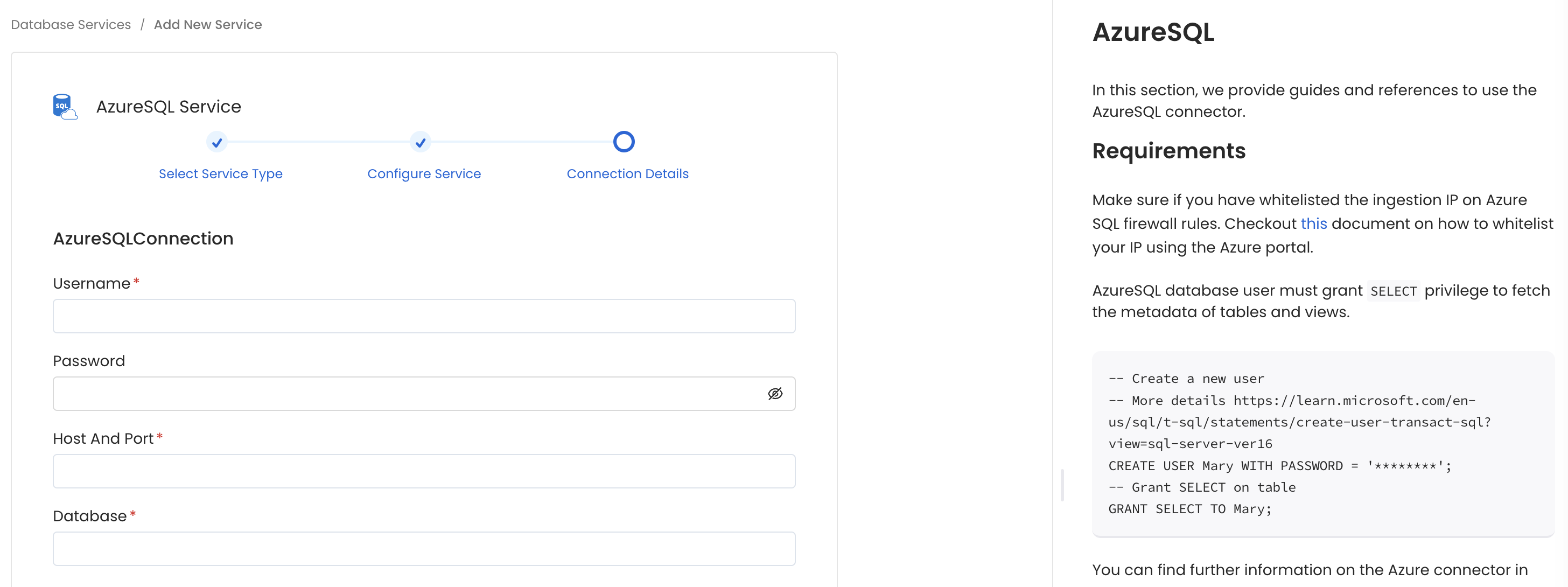

5. Configure the Service Connection
